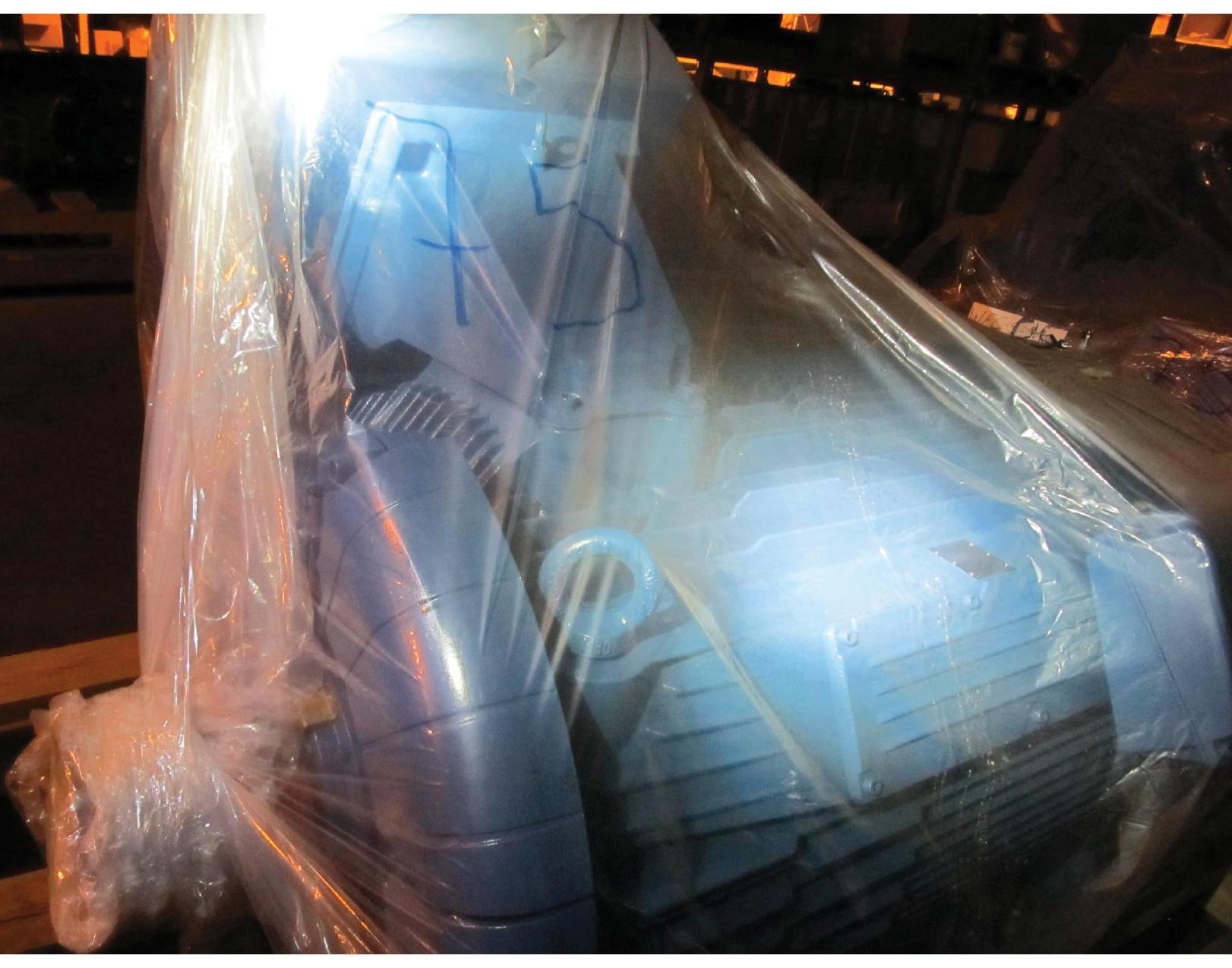

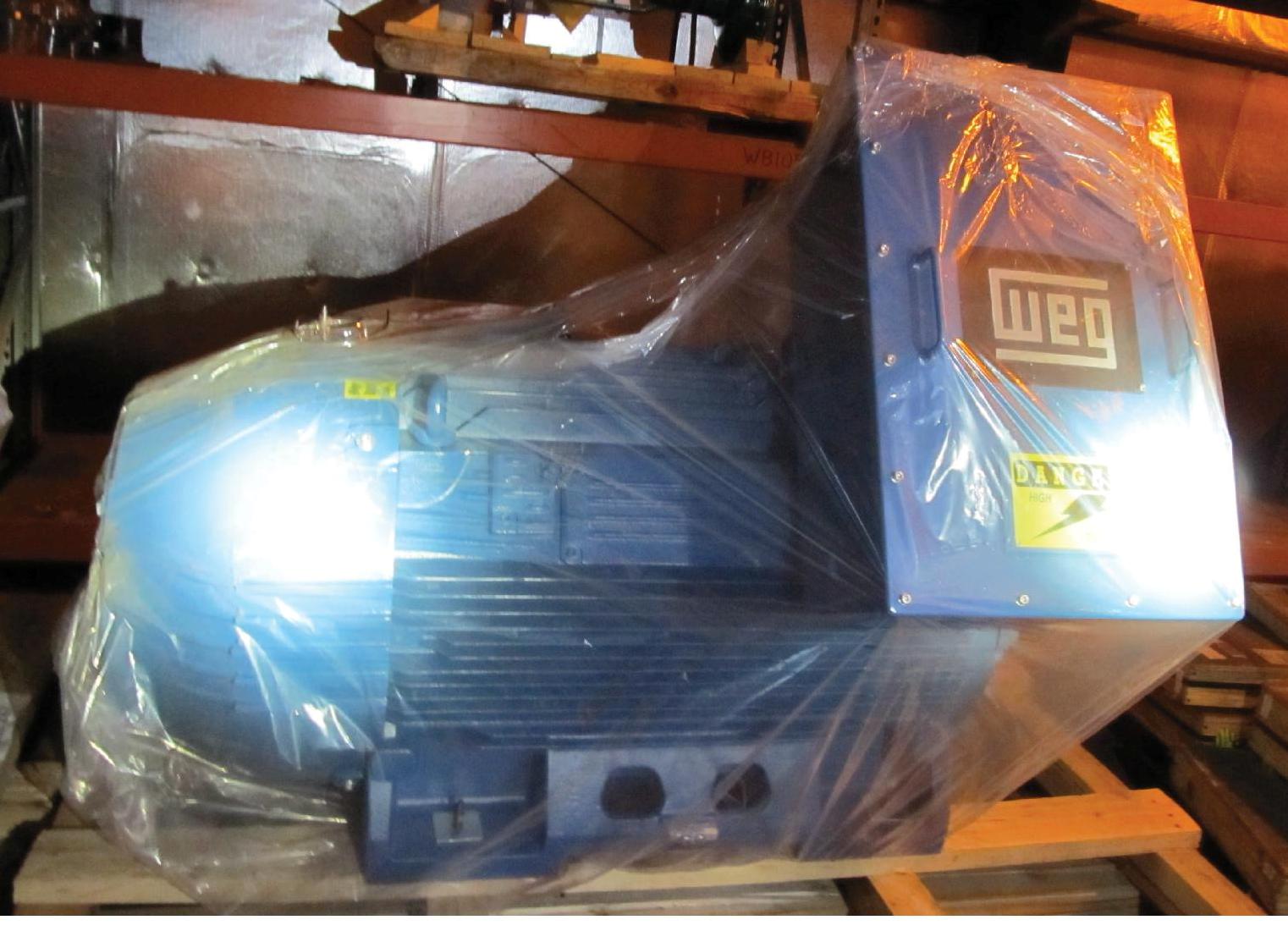

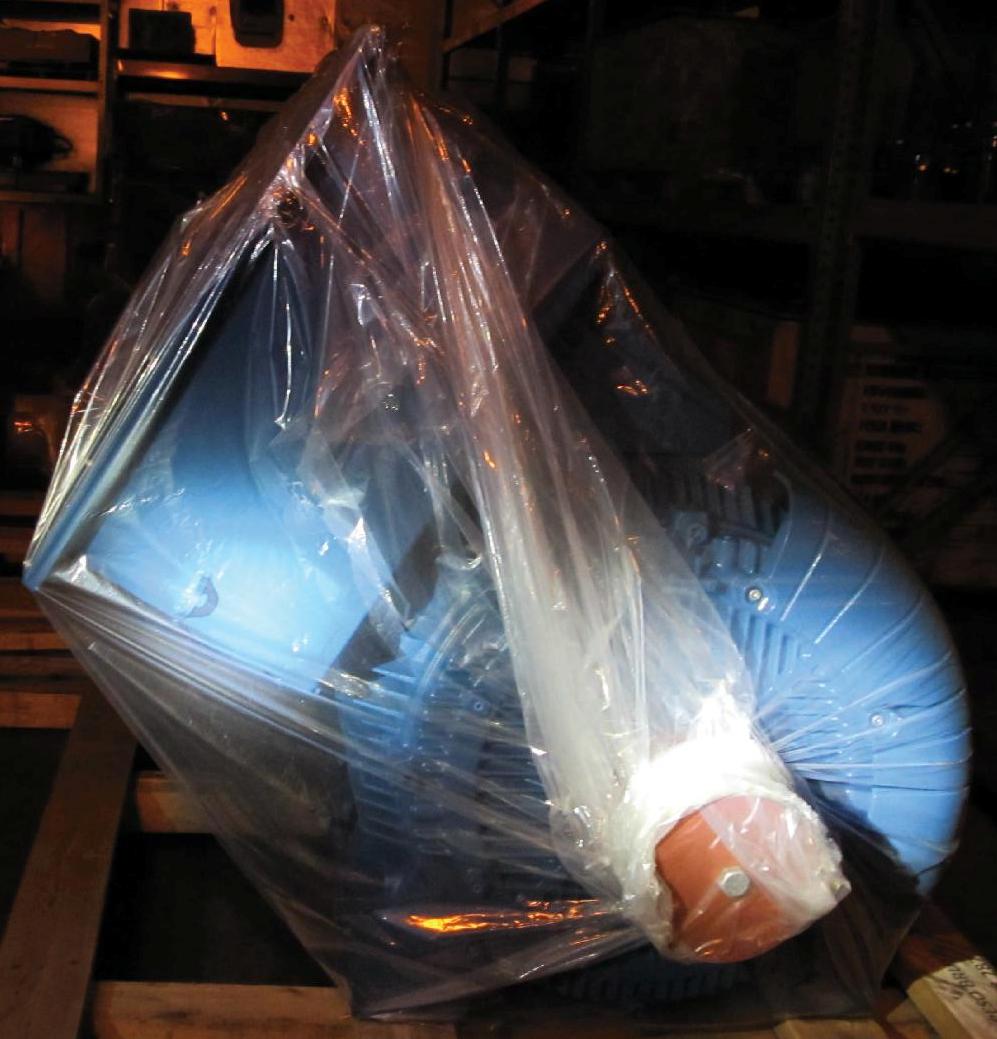

WEG VFD Rated A-C Induction Electric Motors 450 HP (330 KW)

Qty -   2

NEW SURPLUS

WEG VFD Rated A-C Induction Electric Motors

450 HP (330 KW)

891 RPM

4000 Volts

63.0  Amps

3 Phase

60 Cycle

Frame  6806/07

Enclosure  TEFC

Ball Bearings

Class  F Insulation

Duty Continuous

Ambient Temperature 40 C

Service Factor 1.0

KVA Code G

Stator Winding Rtd's  - Qty 6 @ 100 Ohm Bearing Rtd's  - Qty 2 @ 100 Ohm Space Heaters 120 VAC Terminal Box Included - F1 Location Heavy Duty Cast Iron Construction including Ribbed Cooling Fins Drive End Bearings: 6324-C3 Opposite End Bearings: 6319-C3 NEW Manufactured 2016

Dimensions:

 D= 17.00 "

2E= 27.00 "

2F= 31.00 "

 U= 3.375 "

 V= 5.375 "

Motor Weight:   7,250 lbs. each.

Skidded Weight: 7,700 lbs. each.

See WEG attachments for complete dimensions and technical specifications.

----------------------------------------------------------------------------
