VERSON WHEELON, MODEL 29000R-50-116

Download Brocheure
http://raargroupusa.com/uploaded_files/userfiles/files/VERSON%20WHEELON%2C%20MODEL%2029000R-50-116%2C.pdf

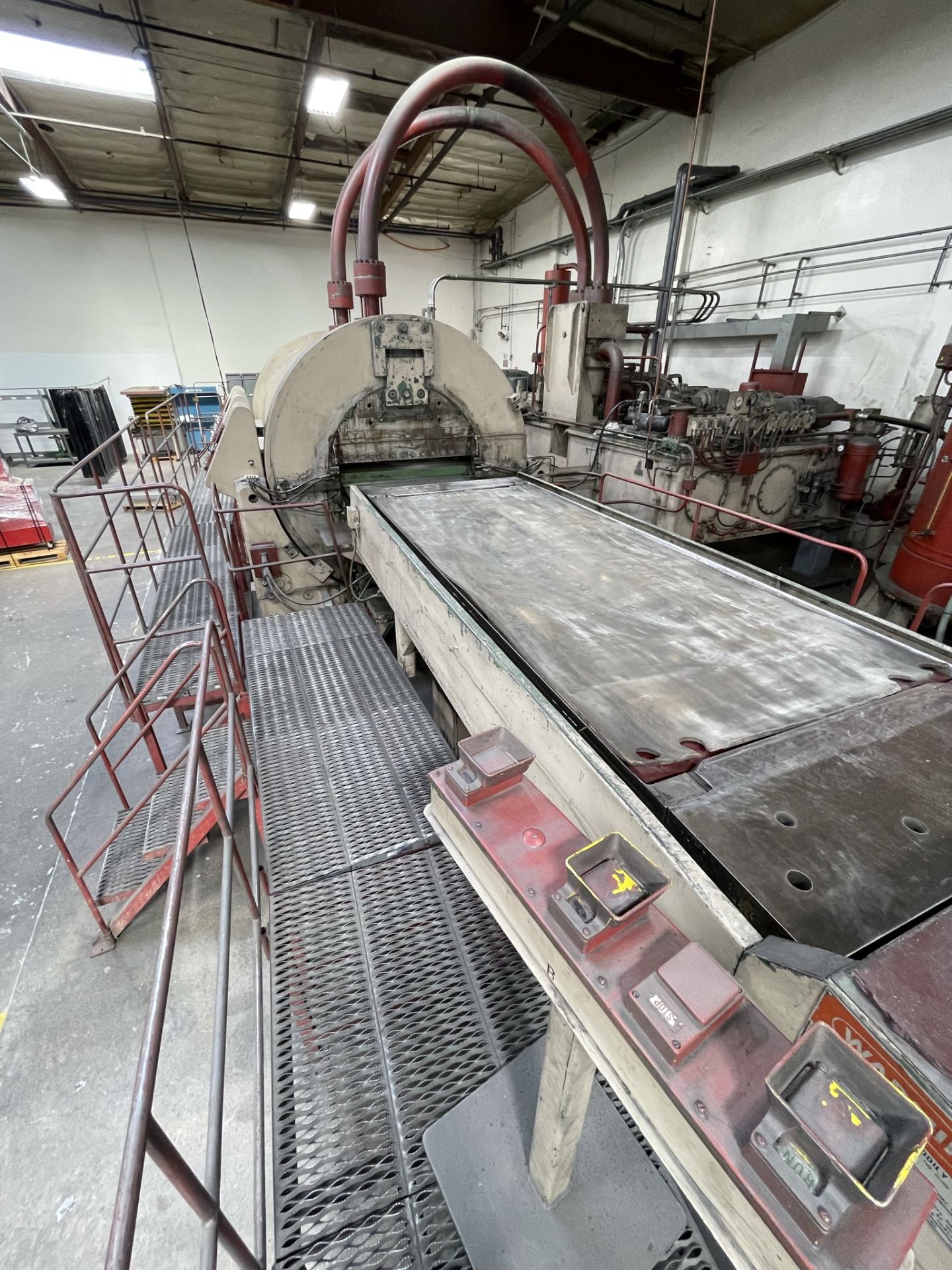

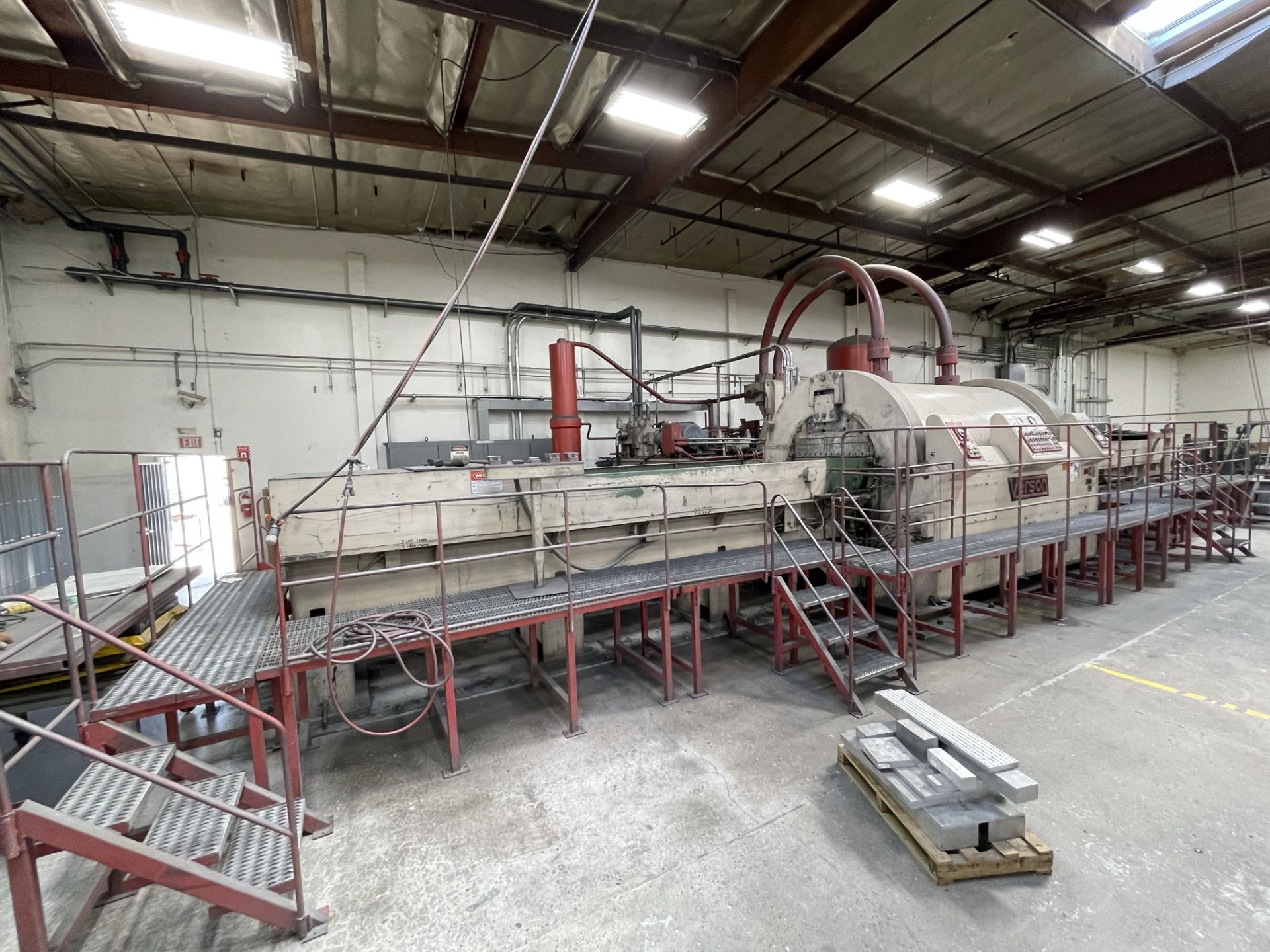

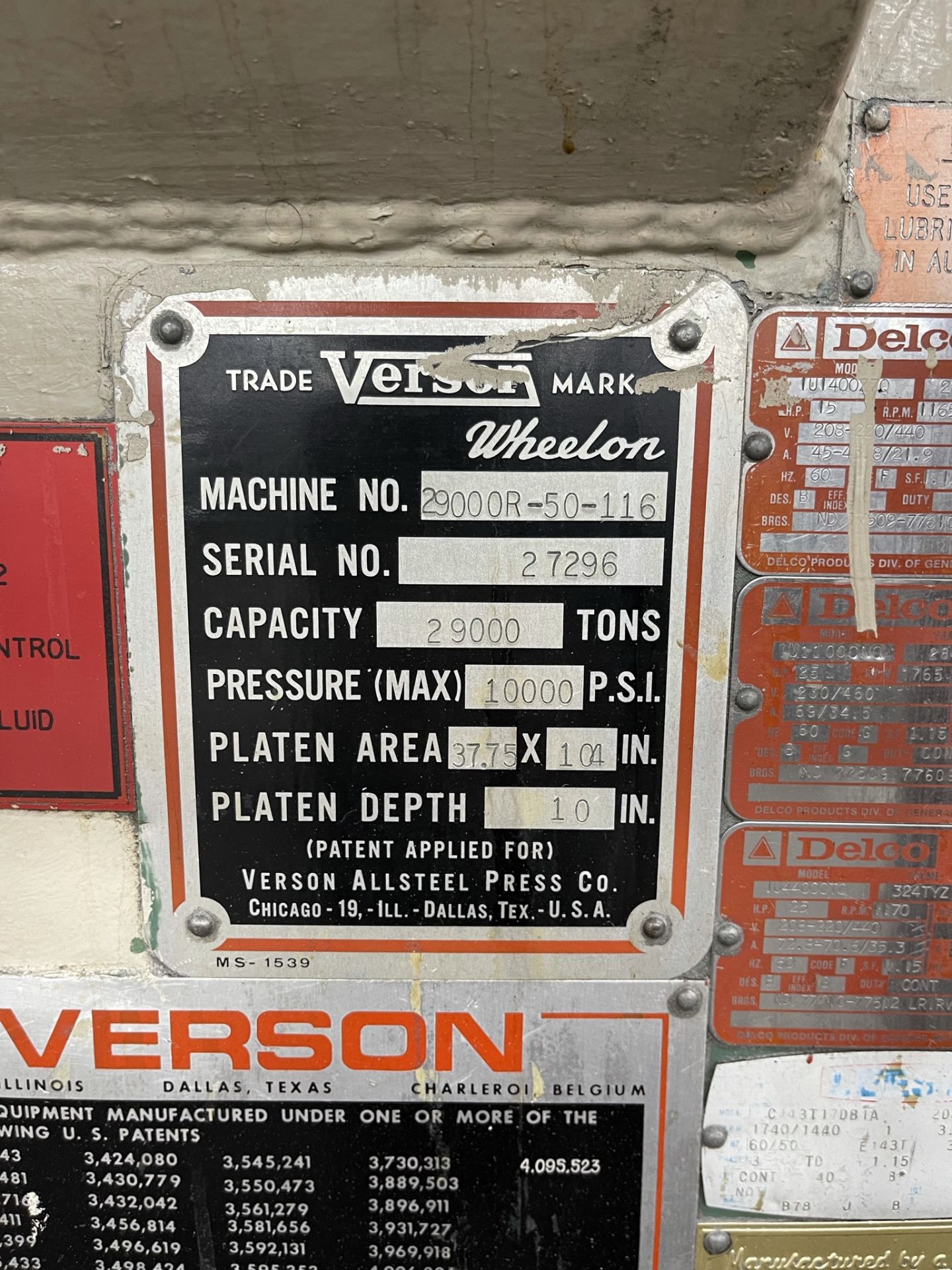

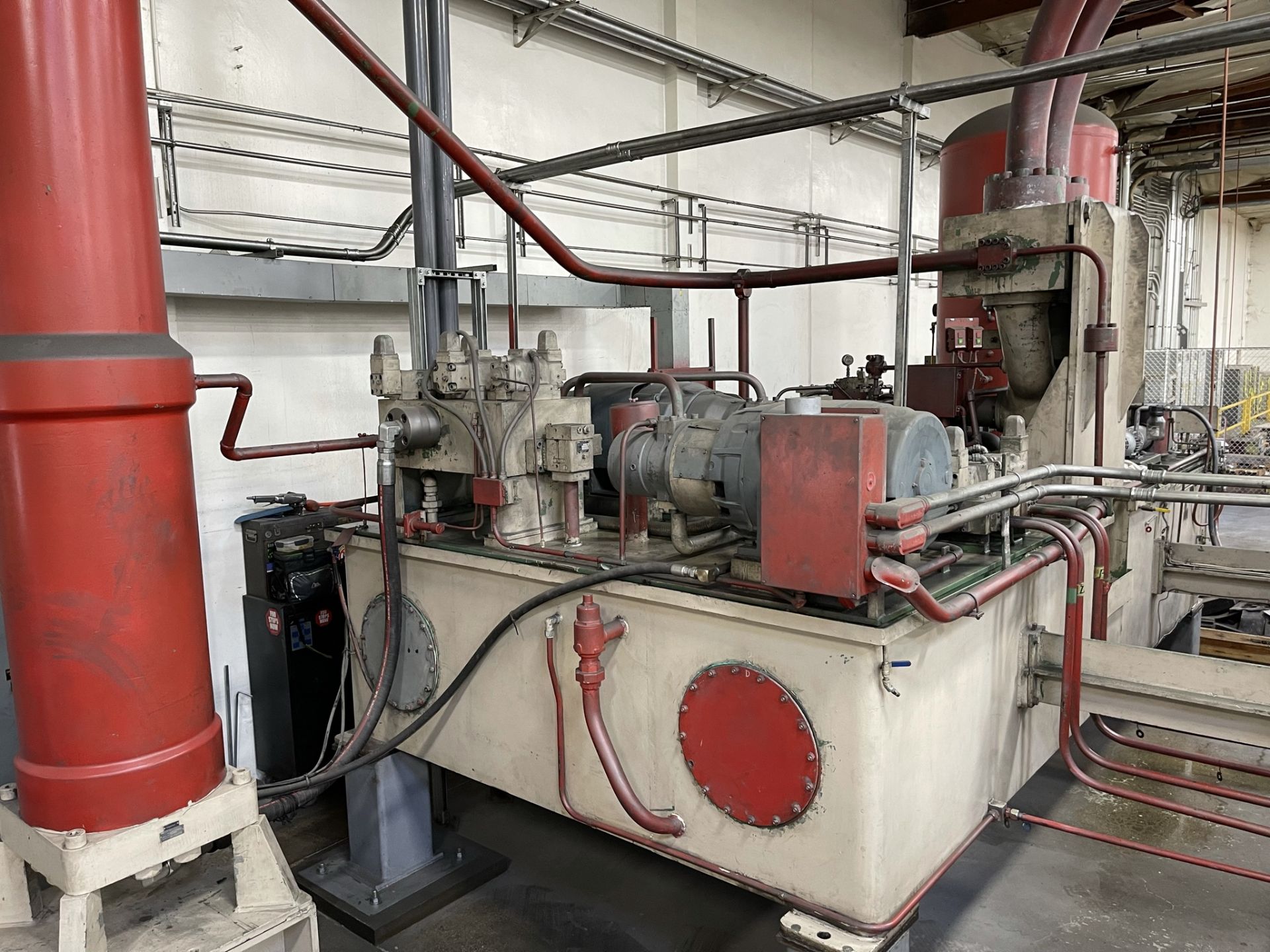

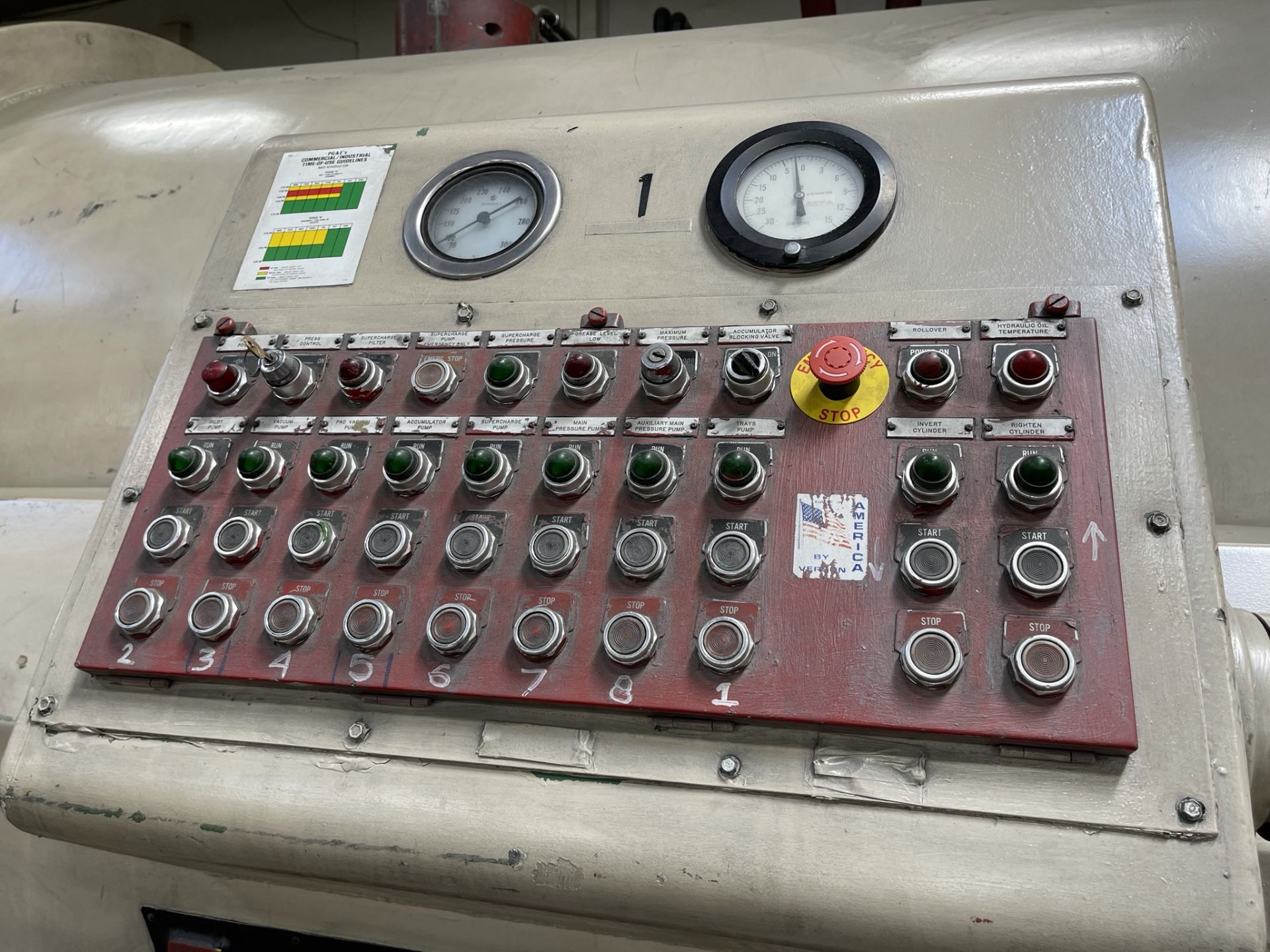

VERSON WHEELON, MODEL 29000R-50-116, FLEX-DIE RUBBER PAD, S/N 27296, FLUID FORMING CAPACITY TONNAGE 29,000 FORMING PRESSURE: THRU 10,000 P.S.I., TRAYS: TWO TRAY SIZE AT TOP 50″ X 116″ (1,270 MM X 2,946.4 MM) RIGHT TRAY AREA AT A 6 INCH (152.4MM) DEPTH 42″ X 109″ (1,079.5 MM X 2,768.6 MM), LEFT TRAY AREA AT A 10 INCH (254 MM) DEPTH 37″ X 104″, MOTOR DRIVES: ALL MOTORS WIRED 440 VOLTS, 3 PHASE, (2) EVACUATE HIGH PRESSURE PUMPS 75 HP & 150 HP, (1) ACC PUMP 30 HP (1) PILOT PUMP 20 HP, (1) VACUUM PUMP 15 HP, (1) FILTER PUMP 1/4 HP, CONTROLS: WIRED 115 VOLTS, OPERATOR CONTROL STATION LOCATED CENTER OF BARREL, (2) SIDE CONTROLS STATIONS LOCATED AT END OF EACH BARREL WITH EMERGENCY STOP BUTTONS, EQUIPPED WITH: (1) POWER UNIT AND OIL RESERVOIR, (1) NITROGEN INTENSIFIER PUMP. (2) THROW PAD ROLL-UP DEVICE FOR EACH TABLE, (1) ACCUMULATOR HYDRAULIC OIL STORAGE TANK, (1) FLUID CELL, (1) RUBBER PAD ELECTRICAL STARTER PANELS, COMPLETE FACTORY SAFETY GUARDS,  DIMENSIONS 342.16″ L-R X 120″, F-B X 1873/8″ HEIGHT WITH FILL LINES,  MAIN CHAMBER WITH FILL LINES, HEIGHT ABOVE GROUND 161 7/8″ (428.63 MM), POWER UNIT AND OIL RESERVOIR F-B 96″ X 178″ (2,438.4 MM X 4,521.2 MM, INTENSIFIER 33″ X 33″ X 132″ HT. (38.2 MM X 838.2 MM X 3,352.8 MM), ACCUMULATOR 80″ DIAMETER X 186″ HT. CONTROL PANEL 144″ LR X 18″ FB X 91″ HT., APPROX. WT. 363,700 LBS, (2,032 MM DIAMETER X 4,724.4 MM HT.) (3,657.6 MM FB X 457.2 FB X 2,311.4 MM HT
