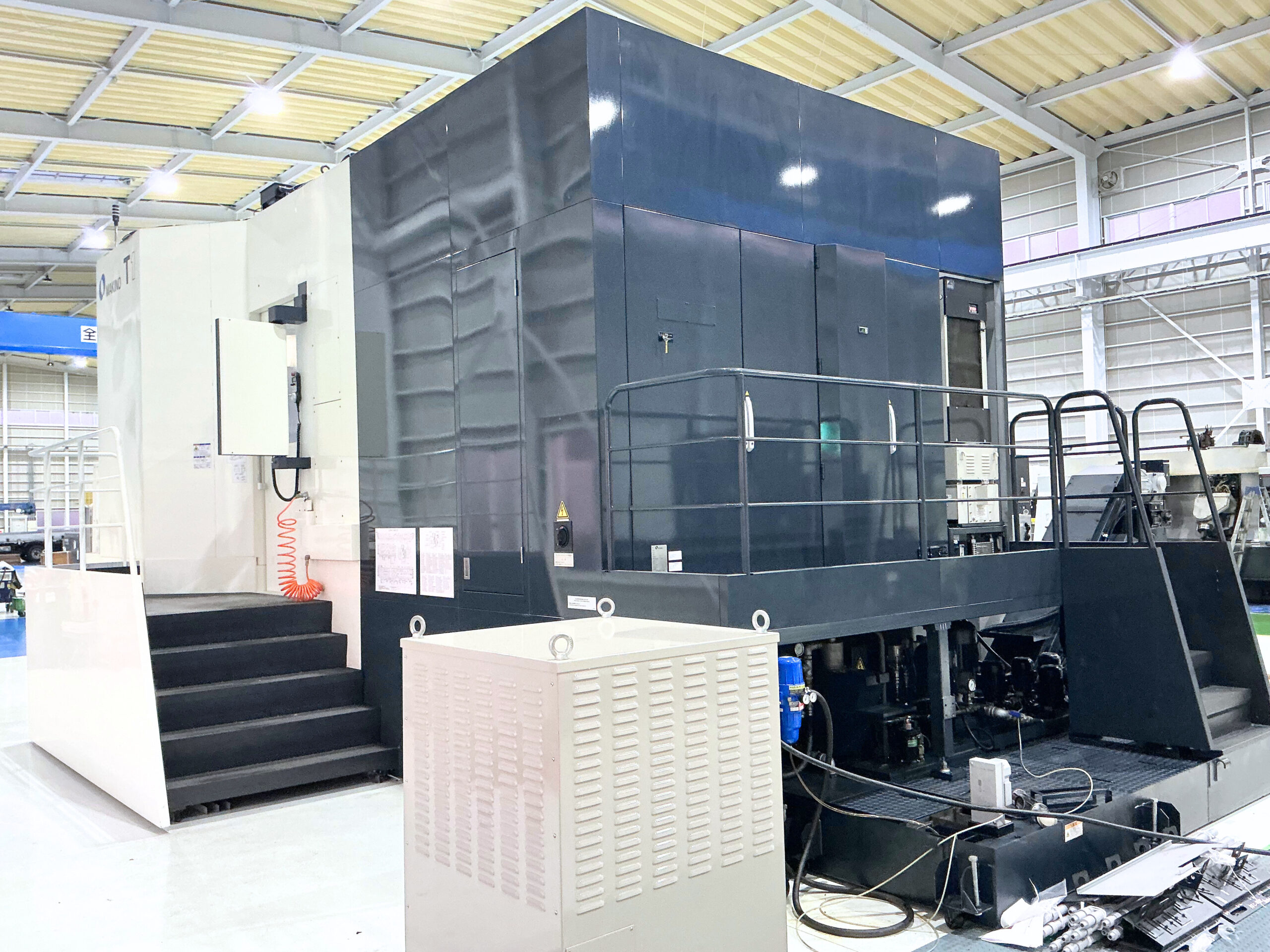

Makino T1 5 axis Machining-center 2018

Makino T1 5 axis Machining-center 2018

Professional 6　T:1000×1000×2APC

X-1500 Y-1300 Z-2000 A--110～45° B-360° 3000 kg　

12,000 rpm　HSK-A 100　ATC-97　

Rigid tap　Spring neck machining　

Scale feedback X, Y, Z  axis 0.01μm

Spindle through coolant (7.0MPa)　Oil skimmer　

Coolant temperature controller(with heater)

Lift up chip conveyor (2 steps out to the left with drum filter LDW 1000)

Mist corrector

Tool length auto measuring system (Non-contact type  Broom)

Automatic workpiece measuring equipment (Marposs Radio-style)(5 axis）　400 V specification
