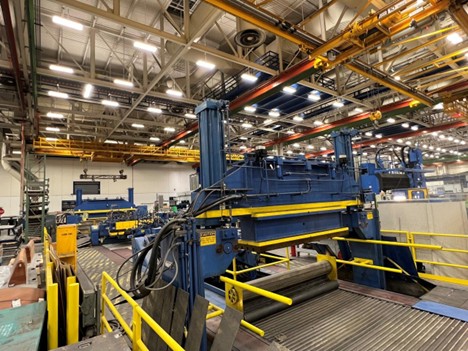

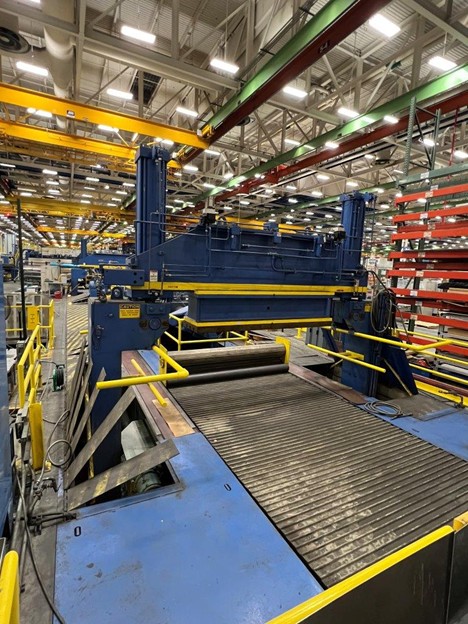

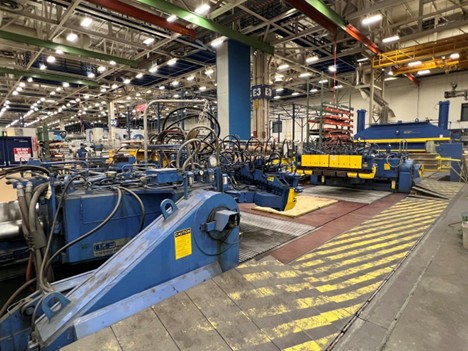

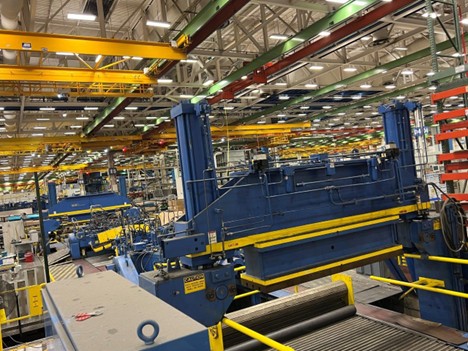

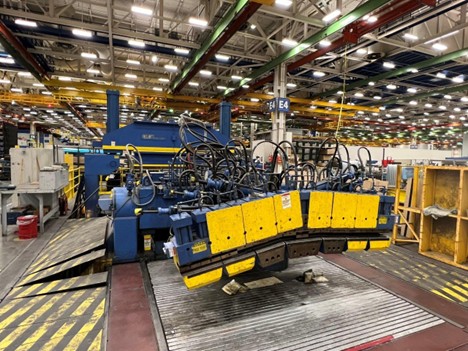

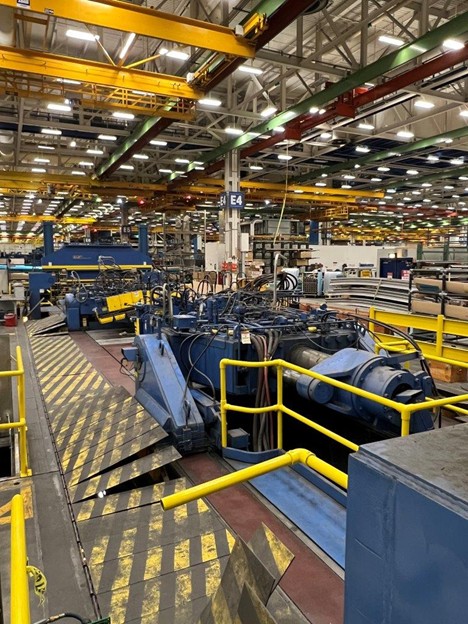

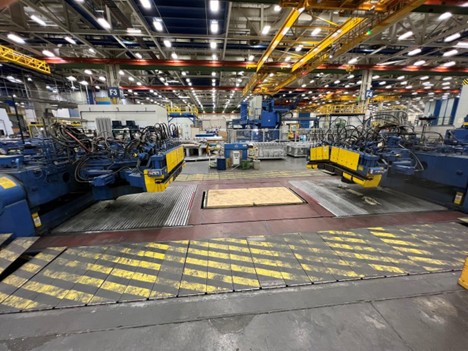

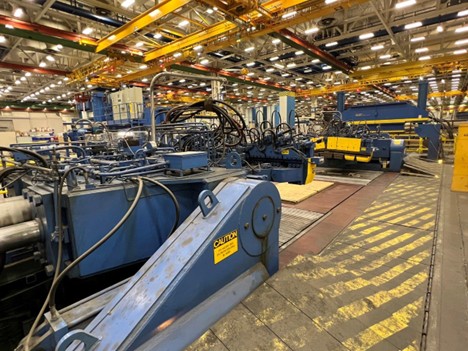

L&F CNC 1000 Ton Longitudinal Stretch Forming Machine

Price: $ 995,000.00

Description

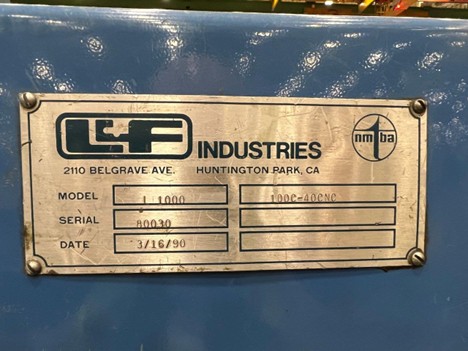

Model: L1000-100-40 Serial No.: 80030 Year: 1990

Specifications: Distance Between Jaws	0 - 480"
Stroke - Each Jaw	36"
Tonnage Per Jaw	50 - 500 Tons
Maximum Tension Tonnage	1,000 Tons
Effective Jaw Length (7 segments per jaw)	100"
Jaw Carriage Travel (max)	264"
Die Table Tonnage	1,000 Tons
Die Table Size (6" extension can be added to each end)	48" x 96"
Die Table Stroke	84"
Die Table Tilt (Longitudinal from Horizontal)	+/- 10 Degrees
Bulldozer #1 & #2 Tonnage	250 Tons Each
