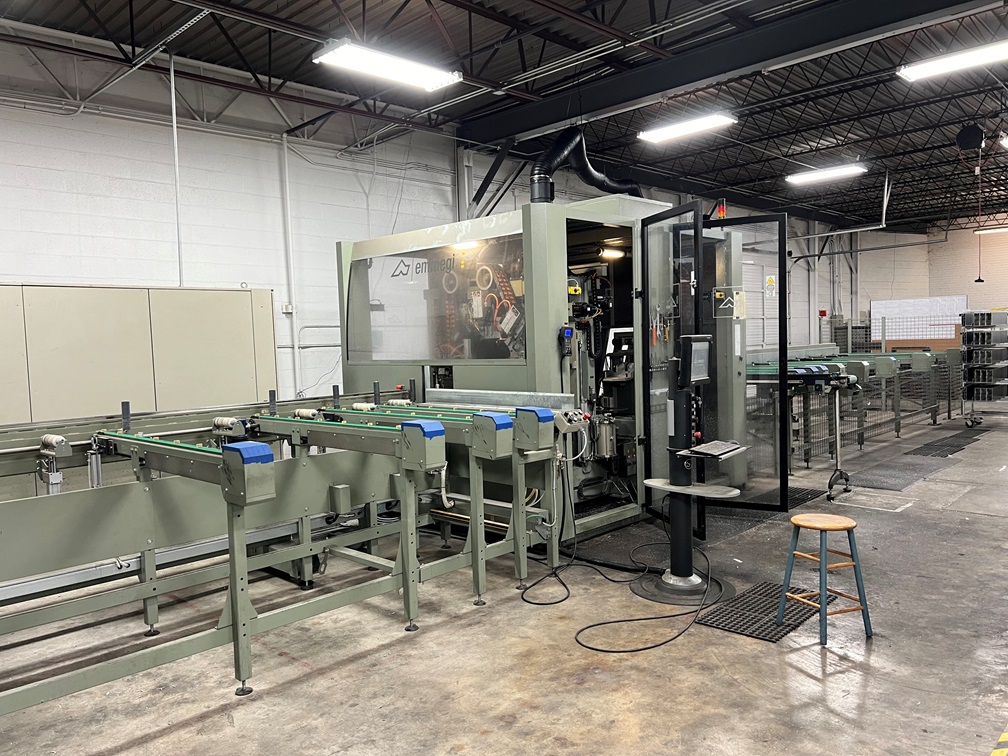

Emmegi Quadra Model L2 CNC 18 Axis Machining Center

X AXIS (longitudinal) (mm) 320
Y AXIS (transversal) (mm) 402
Z AXIS (vertical) (mm) 395
A AXIS (rotary base rotation) 0° ÷ 360°
U AXIS (bar positioning) (mm) 9.660

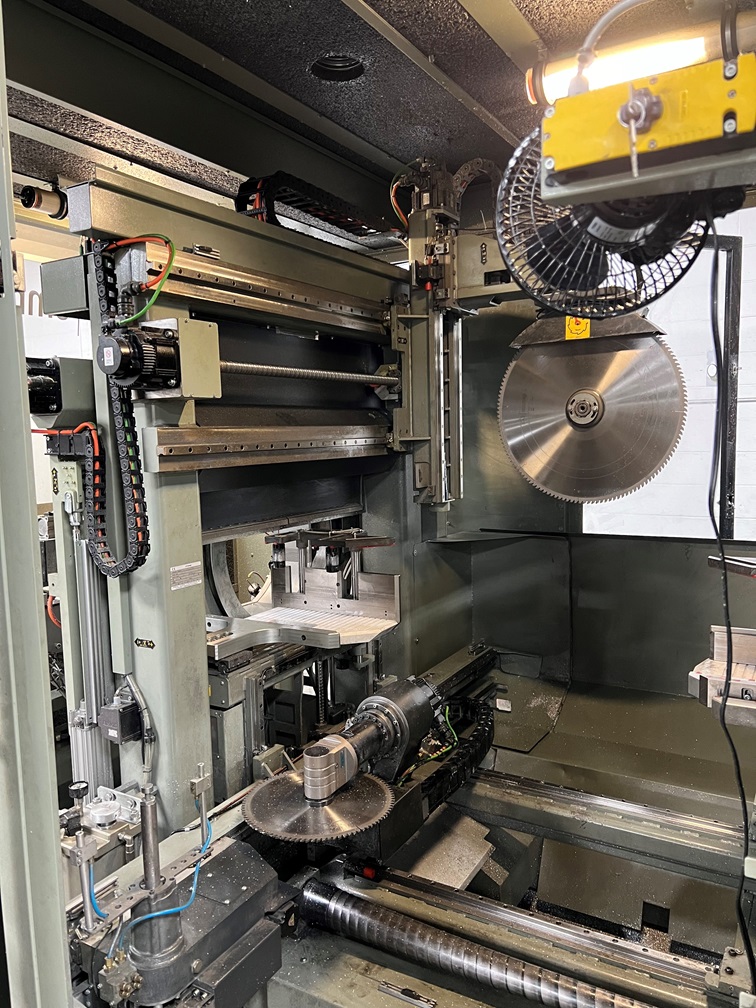

H AXIS (cutting unit vertical movement) (mm) 627
P AXIS (cutting unit transversal movement) (mm) 880
B AXIS (motorised vice movement) (mm) 790
ZG AXIS (horizontal cutting unit vertical movement) (mm) 190
YL AXIS (horizontal cutting unit transversal movement) (mm) 1.300

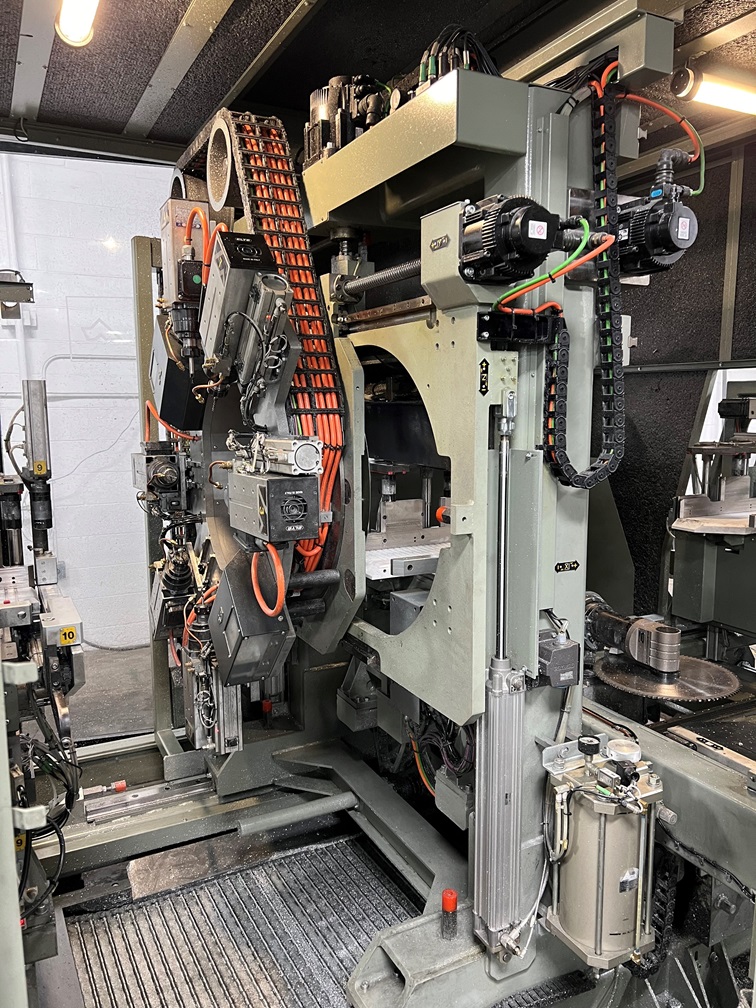

MILLING UNIT
Electrospindles with air cooling 4
Electrospindle rotary unit on rotary base 0° ÷ 360°
Maximum power in S1 (kW) 5,6
Maximum speed (rpm) 24.000
Toolholder ER 32
Maximum number of machining units 6
Disengagement from machining unit work area by means of recirculating ball slides (110 mm stroke)

May be seen under power. Excellent Condition.
