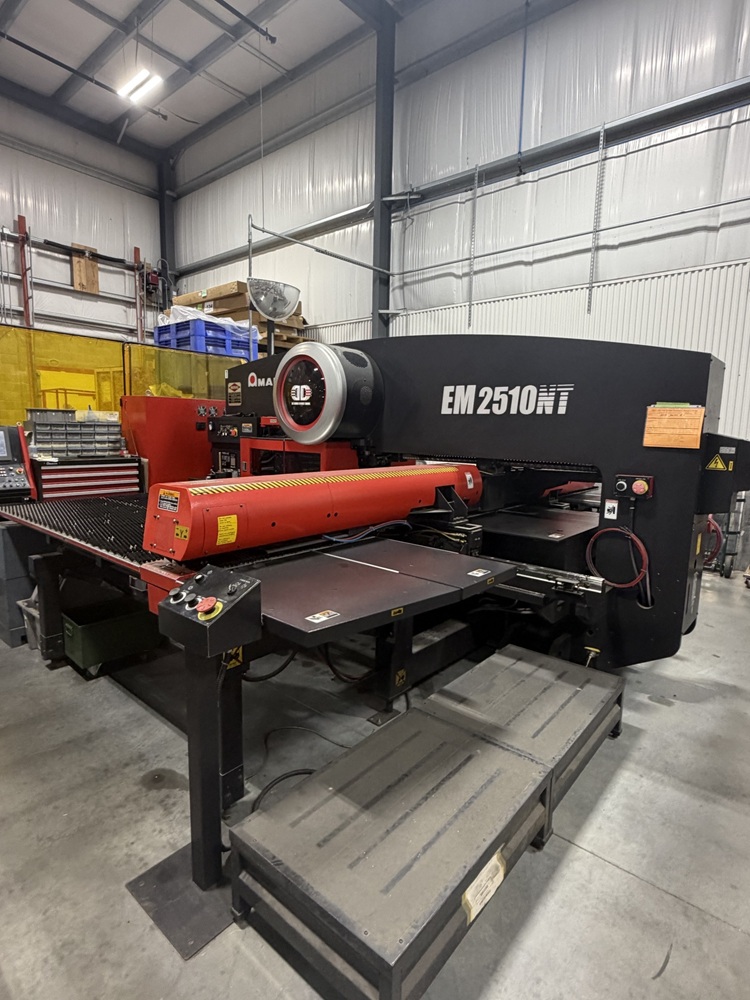

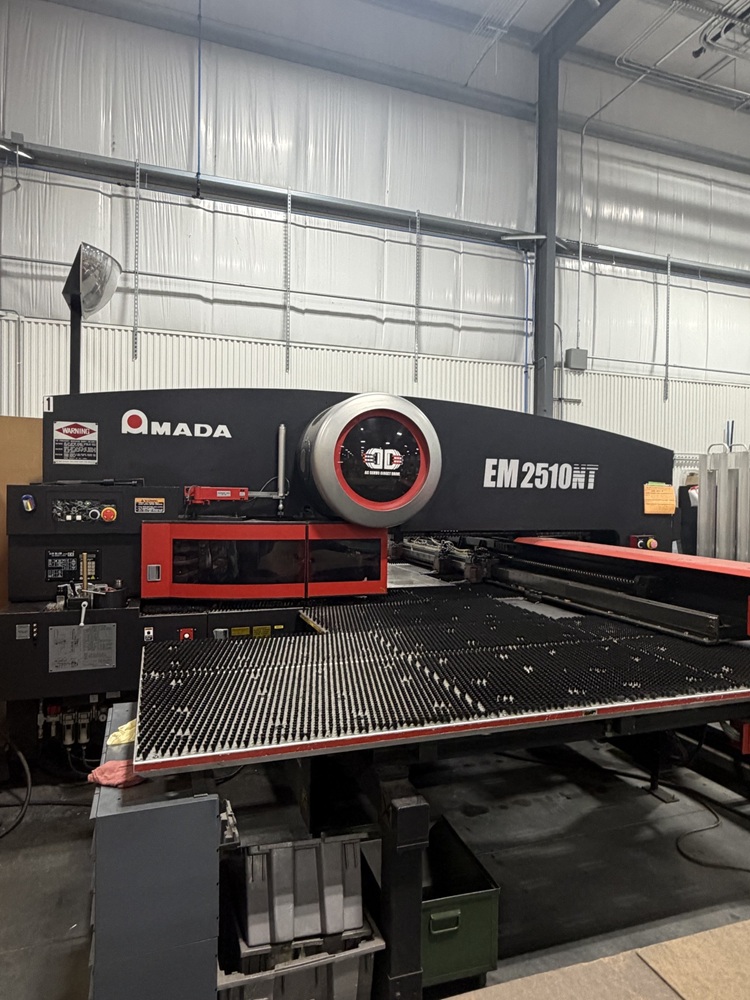

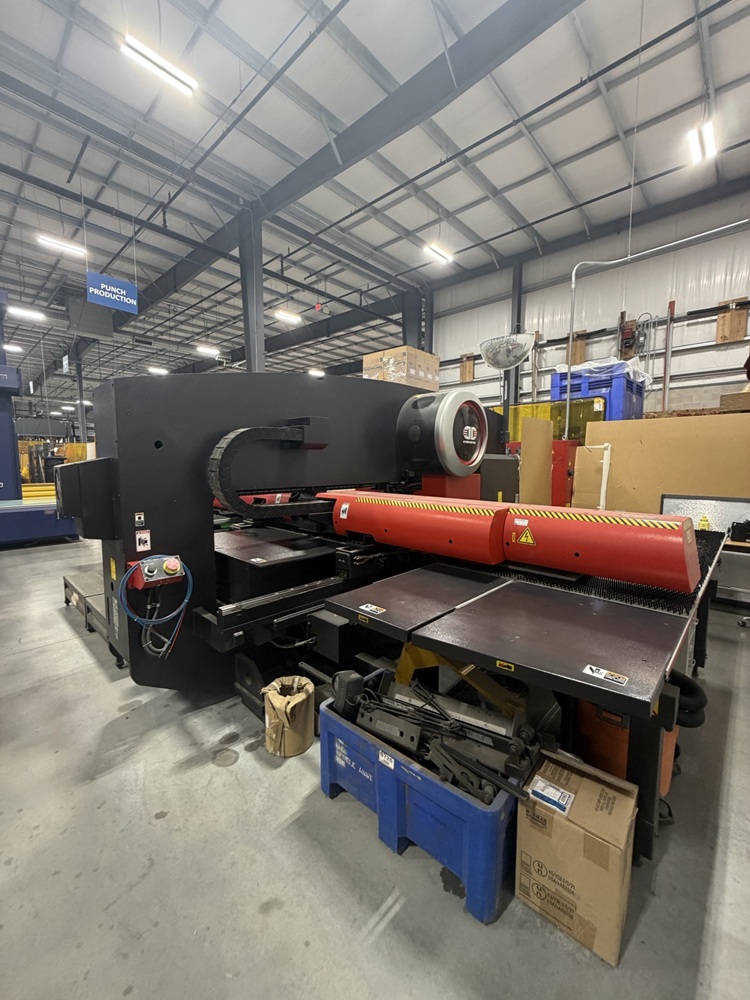

2008 - 22 Ton Amada EM-2510NT Servo Driven Turret Punch

2008 - 22 Ton Amada EM-2510NT Servo Driven Turret Punch

 Core Machine Data

• Type: EM NT Series CNC Turret Punch Press
• Turret: 58‑station King‑type with 4 auto‑index stations
• Bridge Type: 20 ton

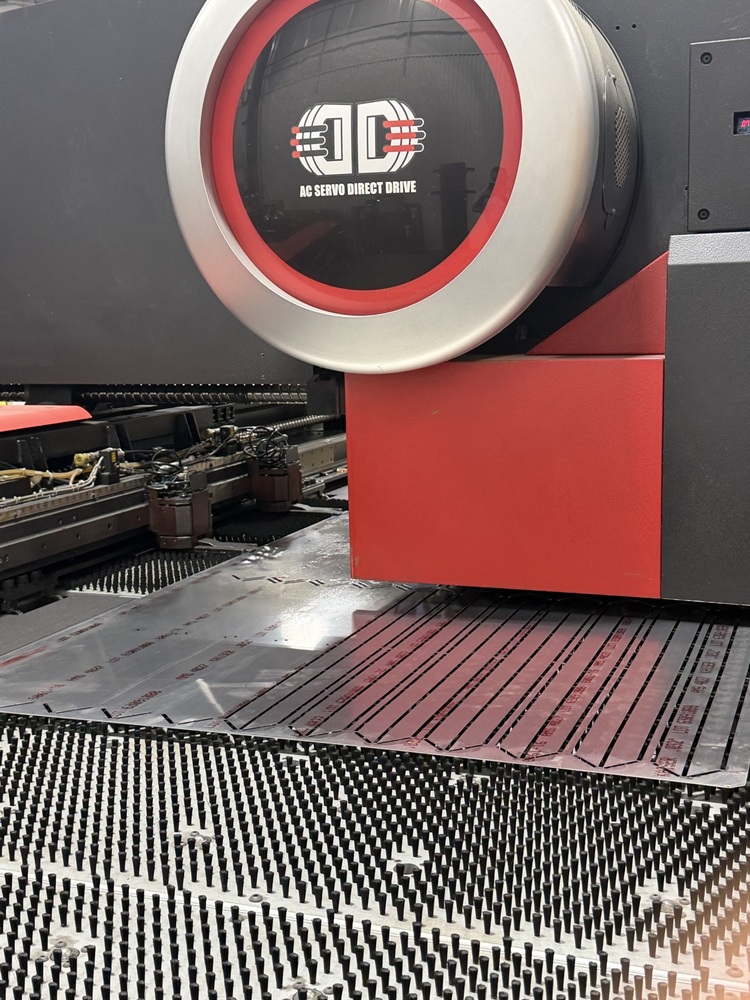

• Drive System: Twin AC servo direct drive (high‑speed)

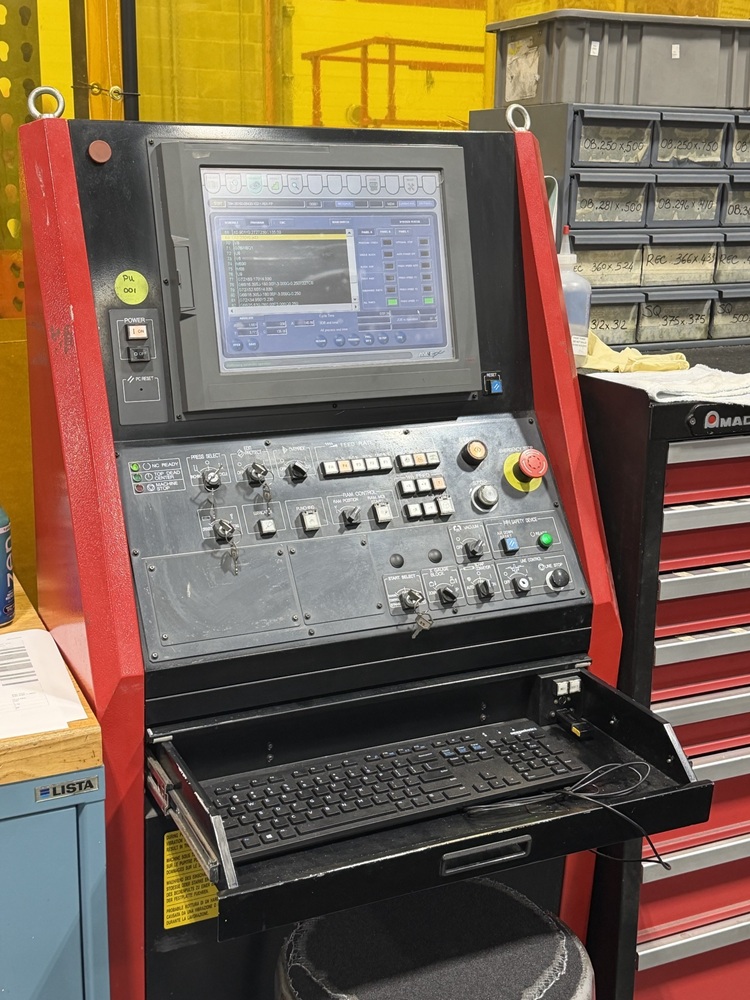

• Control System: Amada AMNC‑F (Fanuc 180i‑PB)

Dimensions & Capacities

• Machine Size: 50 × 98.4 in (W × H)
• Max Sheet Size: 50 x 196.85 in (W x H)
• Max Material Thickness: 4.5 mm mild steel
• Max Sheet Weight: 330lb
• Max Hole Size: 4.5 in

 Turret Configuration

• 36 × A (max dia. 12.7 mm)
• 12 × B (max dia. 31.7 mm)
• 4 × C (max dia. 50.8 mm)
• 2 × D (max dia. 88.9 mm)
• Auto Index: 2 × B (31.7 mm), 2 × E (114.3 mm)

Performance

• Combined X/Y Axis Speed: 128 m/min
• Turret Speed: ±330 rpm
• Punching Accuracy: ±0.1 mm
• Repeatability: ±0.07 mm
• Ram Stroke Length: 37 mm

Power & Utilities

• Electric Power: 22 kVA, 400 V ± 10%, 50 Hz
• Air Pressure: 5.0 kgf/cm²
• Air Flow: 250 L/min
• Tool Lubrication: Air blow system

 Weight & Footprint

• Machine Weight: ~18 tons
• Length × Width × Height: 217.6 ×201.6 × 91.3 in

Price: $99,500.00
